Floor Standing Digital Signage
1. CPU 64-bit 4 cores, main frequency 1.5GHZ, 1GB DDR and 8 GB eMMC RJ45.
2. Internet: 1*10/100M Ethernet ; RJ45.
3. WIFI: Wi-Fi with antenna, 802.11 1×1 BGN+BT.
4. Board Interfaces: USBX2,TF Reader X1,RJ45 X1,HDMI-INX1 (option, if needs).
5. PC Built-in Option: Usually Intel J1900/ I3 /I5 CPU, 4G memory, 120G SSD, Wi-Fi (Options: Chipset Intel HM76/ H81/H110 ).
6. Infrared technology Infrared mutlit touch, finger and gloved hand, or any opaque objects.
Description

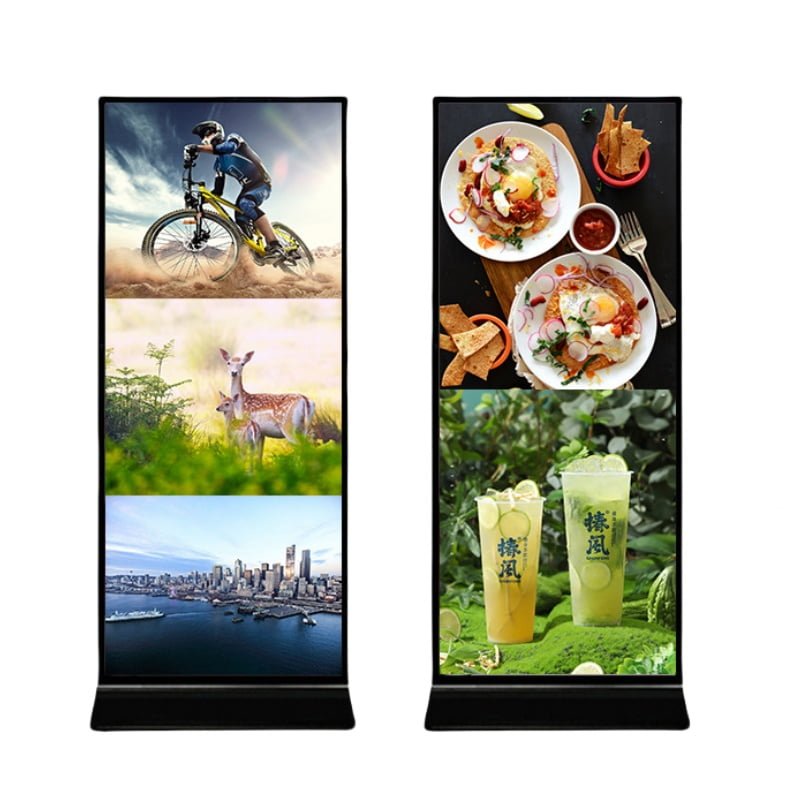

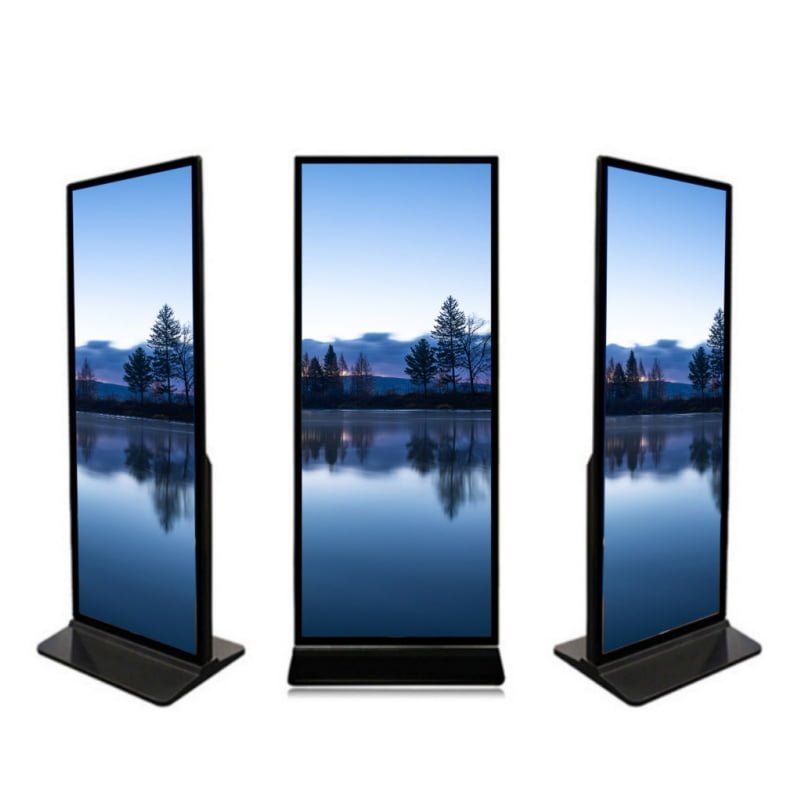

Arotouch Floor Standing Digital Signage is a vertical display for indoor advertising and business communication.
Its floor-standing design makes installation simple. You can place the display near entrances, reception areas, waiting zones, or customer walkways.
The display works well in airports, hotels, restaurants, cafes, retail stores, shopping malls, hospitals, banks, and offices.
Designed for Indoor Advertising
This digital display helps businesses present content in a clear and engaging way.
For example, you can show advertisements, promotions, videos, product information, announcements, or digital menus.
Moreover, the portrait format gives your content a large and visible display area. It works especially well in busy indoor locations.
Free CMS System
Arotouch provides a Free CMS System for this digital signage solution.
The CMS helps businesses manage their digital content. You can update images, videos, advertisements, promotions, and other information.
In addition, WiFi and RJ45 Ethernet provide flexible network connections for different projects.
Full HD Display with 4K Option
The standard display uses 1920×1080 Full HD resolution.
For projects that need more image detail, 3840×2160 4K resolution is available as an option.
Brightness ranges from 200 to 500 cd/m². Several contrast ratio options are also available.
The screen uses 4mm tempered anti-glare glass. The glass reaches Level 7 on the Mohs hardness scale.
Touchscreen Options
The standard model uses a non-touch display. It is ideal for advertising and information playback.
However, you can add infrared touch or capacitive touch technology when interaction is required.
As a result, the same display platform can support digital directories, wayfinding, product browsing, visitor information, and self-service applications.
Available Screen Sizes
Arotouch offers several screen sizes for different indoor environments.
- 32 inch
- 43 inch
- 50 inch
- 55 inch
- 65 inch
- 75 inch
Therefore, customers can choose a suitable screen size for small spaces or large public areas.
Android and Windows Options
The standard configuration comes without an operating system.
Android and Windows options are available for projects that need a built-in computer platform.
The Android option uses RK3288 hardware with 2GB RAM and 8GB storage.
For Windows applications, customers can choose Intel Core i3, i5, or i7 processors. Memory options include 4GB and 8GB. Storage options include 128GB, 256GB, and 512GB.
Applications
Airports can use the display for advertising, passenger information, and wayfinding.
Hotels can show promotions, event information, and guest services.
Restaurants and cafes can display menus, special offers, and promotional videos.
Retail stores can present products, prices, promotions, and brand content.
Shopping malls can use the display for advertising and directory information.
Hospitals and banks can present visitor information, service notices, and announcements.
Key Features
- Floor-standing digital signage design
- 32″, 43″, 50″, 55″, 65″, and 75″ sizes
- 1920×1080 Full HD standard resolution
- 3840×2160 4K optional resolution
- 200-500 cd/m² brightness
- 1200:1 / 4000:1 / 5000:1 contrast ratio options
- Free CMS System
- Non-touch standard configuration
- Infrared touch option
- Capacitive touch option
- Android and Windows options
- 4mm tempered anti-glare glass
- Coated aluminium frame
- WiFi and RJ45 connectivity
- 2×5W built-in speakers
- USB 2.0×2
Technical Specifications
| Panel | TFT LCD |
| Panel Size | 32″ / 43″ / 50″ / 55″ / 65″ / 75″ |
| Resolution | 1920×1080 Full HD Standard / 3840×2160 4K Optional |
| Brightness | 200-500 cd/m² |
| Contrast Ratio | 1200:1 / 4000:1 / 5000:1 |
| Display Color | 16.7M |
| Response Time | 8ms |
| Panel Brand | BOE, AUO, Innolux, CSOT, etc. |
| Viewing Angle | 89°/89° |
| Internal Storage | 2GB + 16GB |
| Touch | Non-Touch Standard / Infrared Touch Optional / Capacitive Touch Optional |
| Glass | 4mm Tempered Glass, Level 7 on Mohs Hardness Scale, Anti-Glare |
| Frame Material | Coated Aluminium |
| Operating System | Without OS Standard / Android Optional / Windows Optional |
| Android Option | RK3288 / 2GB RAM / 8GB Storage |
| Windows Option | Intel Core i3/i5/i7 / 4GB or 8GB Memory / 128GB, 256GB or 512GB Storage |
| Speaker | 2×5W |
| Internet | WiFi / RJ45 |
| Interface | USB 2.0×2 |
| Video Format | MPEG1 / MPEG2 / MPEG4 / ASP / WMV / AVI |
| Image Format | JPEG / BMP / TIFF / PNG / GIF |
| Audio Format | Wave / MP3 / WMA / AAC |
| Image Resolution | Supports 1080p, 720p, 480p and Multiple Resolutions |
| Power Supply | AC 100-240V, 50/60Hz |
| Overall Power Consumption | ≤220W |
| Standby Power Consumption | <1W |
| Operating Temperature | 0-50℃ |
| Storage Temperature | -20-60℃ |
| Operating Humidity | 0.85 |
| Storage Humidity | 0%-95% Non-Condensing |
| Accessories Included | 1×Power Cord, 1×User Manual, Remote Controller |
Flexible Digital Signage Solution
Arotouch supplies Floor Standing Digital Signage for distributors, system integrators, and commercial projects.
Customers can select the screen size, resolution, panel brand, touch technology, and operating system according to project needs.
For standard advertising, Full HD provides a practical display solution. Meanwhile, the 4K option delivers sharper visual content.
For interactive projects, touch technology adds another way for customers to access information.
As a result, Arotouch Floor Standing Digital Signage offers a flexible platform for indoor advertising, information display, and customer communication.
