Digital Signage Kiosk
1. CPU 64-bit 4 cores, main frequency 1.5GHZ, 1GB DDR and 8 GB eMMC RJ45.
2. Internet: 1*10/100M Ethernet ; RJ45.
3. WIFI: Wi-Fi with antenna, 802.11 1×1 BGN+BT.
4. Board Interfaces: USBX2,TF Reader X1,RJ45 X1,HDMI-INX1 (option, if needs).
5. PC Built-in Option: Usually Intel J1900/ I3 /I5 CPU, 4G memory, 120G SSD, Wi-Fi (Options: Chipset Intel HM76/ H81/H110 ).
6. Infrared technology Infrared mutlit touch, finger and gloved hand, or any opaque objects.
Description

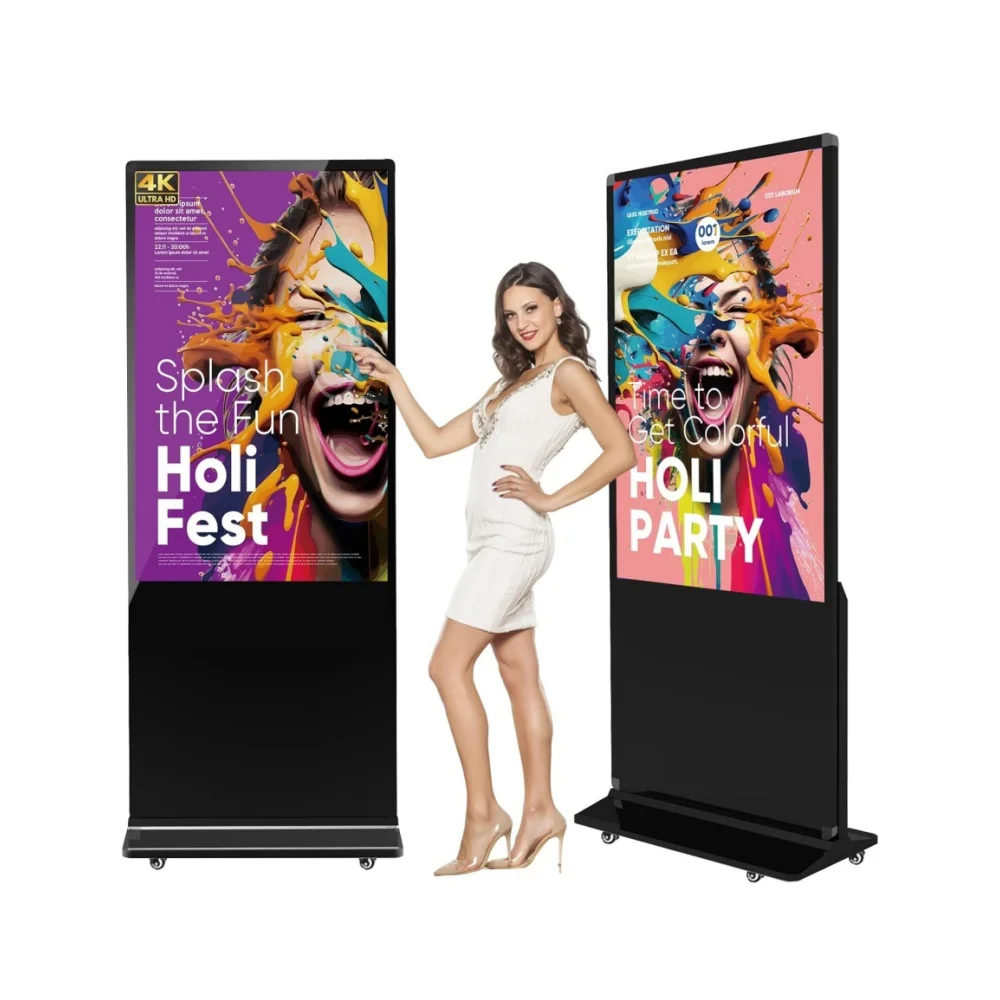

Arotouch Digital Signage Kiosk is a floor-standing digital display designed for indoor advertising, customer information, promotions and interactive communication. Its vertical kiosk design provides a highly visible digital platform for businesses and public environments.
Available in 32″, 43″, 50″, 55″, 65″ and 75″ screen sizes, the kiosk can be configured as a non-touch advertising display or equipped with infrared or capacitive touch technology for interactive applications.
Floor-Standing Digital Signage Kiosk
The freestanding design allows the kiosk to be positioned directly on the floor without wall installation. It is suitable for entrances, reception areas, waiting zones, corridors and other high-traffic indoor locations.
The vertical screen format is ideal for displaying promotional videos, advertisements, digital menus, product information, announcements and wayfinding content.
Free CMS System for Content Management
Arotouch Digital Signage Kiosk supports a Free CMS System for managing digital signage content. Businesses can organize and update advertising materials, images, videos, promotions and information content for their displays.
WiFi and RJ45 Ethernet connectivity are available for network-based applications, providing flexibility for commercial digital signage projects.
Full HD and 4K Display Options
The standard resolution is 1920×1080 Full HD, while 3840×2160 4K resolution is available as an option.
The display supports 200-500 cd/m² brightness and multiple contrast ratio options. The 4mm tempered anti-glare glass provides additional protection for commercial indoor environments.
Interactive Touchscreen Option
The standard configuration is non-touch for advertising and information playback. For interactive projects, the Digital Signage Kiosk can be equipped with infrared touch or capacitive touch technology.
Interactive configurations can be used for digital directories, wayfinding, product browsing, visitor information, self-service applications and customer engagement.
Android and Windows Configurations
The kiosk is available without an operating system as the standard configuration, with Android and Windows options available for different project requirements.
The Android option uses RK3288 hardware with 2GB RAM and 8GB storage. Windows configurations can be equipped with Intel Core i3, i5 or i7 processors, with 4GB or 8GB memory and 128GB, 256GB or 512GB storage options.
Applications
- Airports: passenger information, advertising and wayfinding
- Hotels: guest information, promotions and event notices
- Restaurants: digital menus and promotional content
- Cafes: menu information and special offers
- Retail stores: product information and advertising
- Shopping malls: promotions and digital directories
- Hospitals: visitor information and announcements
- Banks: service information and customer communication
- Corporate offices: visitor information and reception displays
Key Features
- Floor-standing digital signage kiosk design
- 32″, 43″, 50″, 55″, 65″ and 75″ screen sizes
- 1920×1080 Full HD standard resolution
- 3840×2160 4K optional resolution
- 200-500 cd/m² brightness
- 1200:1 / 4000:1 / 5000:1 contrast ratio options
- Free CMS System
- Non-touch standard configuration
- Infrared touch option
- Capacitive touch option
- Android and Windows options
- 4mm tempered anti-glare glass
- Coated aluminium frame
- WiFi and RJ45 connectivity
- 2×5W built-in speakers
- USB 2.0×2
Technical Specifications
| Panel | TFT LCD |
| Panel Size | 32″ / 43″ / 50″ / 55″ / 65″ / 75″ |
| Resolution | 1920×1080 Full HD Standard / 3840×2160 4K Optional |
| Brightness | 200-500 cd/m² |
| Contrast Ratio | 1200:1 / 4000:1 / 5000:1 |
| Display Color | 16.7M |
| Response Time | 8ms |
| Panel Brand | BOE, AUO, Innolux, CSOT, etc. |
| Viewing Angle | 89°/89° |
| Internal Storage | 2GB + 16GB |
| Touch | Non-Touch Standard / Infrared Touch Optional / Capacitive Touch Optional |
| Glass | 4mm Tempered Glass, Level 7 on Mohs Hardness Scale, Anti-Glare |
| Frame Material | Coated Aluminium |
| Operating System | Without OS Standard / Android Optional / Windows Optional |
| Android Option | RK3288 / 2GB RAM / 8GB Storage |
| Windows Option | Intel Core i3/i5/i7 / 4GB or 8GB Memory / 128GB, 256GB or 512GB Storage |
| Speaker | 2×5W |
| Internet | WiFi / RJ45 |
| Interface | USB 2.0×2 |
| Video Format | MPEG1 / MPEG2 / MPEG4 / ASP / WMV / AVI |
| Image Format | JPEG / BMP / TIFF / PNG / GIF |
| Audio Format | Wave / MP3 / WMA / AAC |
| Image Resolution | Supports 1080p, 720p, 480p and Multiple Resolutions |
| Power Supply | AC 100-240V, 50/60Hz |
| Overall Power Consumption | ≤220W |
| Standby Power Consumption | <1W |
| Operating Temperature | 0-50℃ |
| Storage Temperature | -20-60℃ |
| Operating Humidity | 0.85 |
| Storage Humidity | 0%-95% Non-Condensing |
| Accessories Included | 1×Power Cord, 1×User Manual, Remote Controller |
Commercial Digital Signage Kiosk Solutions
Arotouch supplies Digital Signage Kiosk solutions for distributors, system integrators and commercial projects. Screen size, resolution, panel brand, touch technology and operating system can be selected according to application requirements.
For standard advertising, the non-touch configuration provides a practical solution for displaying digital content. For interactive applications, touch technology can turn the kiosk into an information, wayfinding or self-service station.
With multiple screen sizes, Full HD and 4K options, optional touchscreen technology and a Free CMS System, Arotouch Digital Signage Kiosk is suitable for a wide range of indoor commercial and public environments.
