Digital Signage Totem
1. CPU 64-bit 4 cores, main frequency 1.5GHZ, 1GB DDR and 8 GB eMMC RJ45.
2. Internet: 1*10/100M Ethernet ; RJ45.
3. WIFI: Wi-Fi with antenna, 802.11 1×1 BGN+BT.
4. Board Interfaces: USBX2,TF Reader X1,RJ45 X1,HDMI-INX1 (option, if needs).
5. PC Built-in Option: Usually Intel J1900/ I3 /I5 CPU, 4G memory, 120G SSD, Wi-Fi (Options: Chipset Intel HM76/ H81/H110 ).
6. Infrared technology Infrared mutlit touch, finger and gloved hand, or any opaque objects.
Description

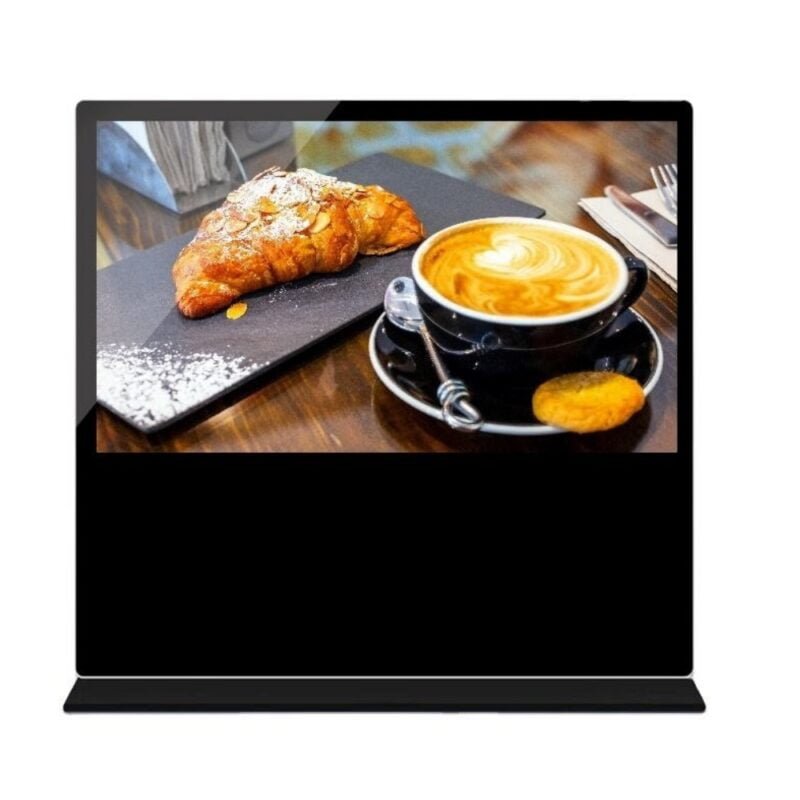

Arotouch Digital Signage Totem is a floor-standing display for indoor advertising and business communication. Its vertical design makes it easy to place in entrances, reception areas, shopping spaces and other busy locations.
The display can show advertisements, promotional videos, product information, announcements and digital menus. It is suitable for airports, hotels, restaurants, cafes, retail stores, shopping malls, hospitals, banks and corporate offices.
Floor-Standing Digital Advertising Solution
The Digital Signage Totem stands directly on the floor. It does not require wall installation.
This design gives businesses more freedom when choosing an installation location. Place the screen near an entrance, waiting area, reception desk or customer walkway.
The portrait format also makes the display easy to notice in busy indoor environments.
Free CMS System
Arotouch provides a Free CMS System for digital signage applications. Businesses can use the CMS to manage digital advertising and information content.
Content can include images, videos, promotions, announcements and other marketing materials. WiFi and RJ45 Ethernet are available for connected digital signage applications.
Full HD and 4K Display Options
The standard resolution is 1920×1080 Full HD. A 3840×2160 4K option is also available.
The 4K option provides sharper images for detailed advertising content and high-resolution videos. Brightness can be configured from 200 to 500 cd/m².
The screen uses 4mm tempered anti-glare glass. The glass has Level 7 hardness on the Mohs scale.
Optional Touchscreen Function
The standard Digital Signage Totem is non-touch. This configuration is suitable for advertising and information playback.
For interactive applications, infrared touch and capacitive touch are available as options.
Touchscreen models can be used for interactive directories, product browsing, digital wayfinding, visitor information and self-service applications.
Multiple Screen Sizes
Arotouch offers several screen sizes for different commercial environments. Available sizes include 32″, 43″, 50″, 55″, 65″ and 75″.
Smaller models are suitable for compact areas. Larger models provide better visibility in entrances, halls and other open spaces.
Android and Windows Options
The standard configuration comes without an operating system. Android and Windows options are available for different project requirements.
The Android option uses RK3288 hardware with 2GB RAM and 8GB storage.
Windows configurations can use Intel Core i3, i5 or i7 processors. Memory options include 4GB and 8GB. Storage options include 128GB, 256GB and 512GB.
Applications
- Airports: advertising, passenger information and wayfinding
- Hotels: guest information, promotions and event notices
- Restaurants: digital menus and promotional campaigns
- Cafes: menu content and special offers
- Retail stores: product information and advertising
- Shopping malls: promotions and directory information
- Hospitals: visitor information and announcements
- Banks: service information and promotions
- Corporate offices: reception and visitor information
Key Features
- Floor-standing Digital Signage Totem design
- 32″, 43″, 50″, 55″, 65″ and 75″ sizes
- 1920×1080 Full HD standard resolution
- 3840×2160 4K option
- 200-500 cd/m² brightness
- 1200:1 / 4000:1 / 5000:1 contrast ratio options
- Free CMS System
- Non-touch standard configuration
- Infrared touch option
- Capacitive touch option
- Android and Windows options
- BOE, AUO, Innolux and CSOT panel options
- 4mm tempered anti-glare glass
- Coated aluminium frame
- WiFi and RJ45 connectivity
- 2×5W built-in speakers
- USB 2.0×2
Technical Specifications
| Panel | TFT LCD |
| Panel Size | 32″ / 43″ / 50″ / 55″ / 65″ / 75″ |
| Resolution | 1920×1080 Full HD Standard / 3840×2160 4K Optional |
| Brightness | 200-500 cd/m² |
| Contrast Ratio | 1200:1 / 4000:1 / 5000:1 |
| Display Color | 16.7M |
| Response Time | 8ms |
| Panel Brand | BOE, AUO, Innolux, CSOT, etc. |
| Viewing Angle | 89°/89° |
| Internal Storage | 2GB + 16GB |
| Touch | Non-Touch Standard / Infrared Touch Optional / Capacitive Touch Optional |
| Glass | 4mm Tempered Glass, Level 7 on Mohs Hardness Scale, Anti-Glare |
| Frame Material | Coated Aluminium |
| Operating System | Without OS Standard / Android Optional / Windows Optional |
| Android Option | RK3288 / 2GB RAM / 8GB Storage |
| Windows Option | Intel Core i3/i5/i7 / 4GB or 8GB Memory / 128GB, 256GB or 512GB Storage |
| Speaker | 2×5W |
| Internet | WiFi / RJ45 |
| Interface | USB 2.0×2 |
| Video Format | MPEG1 / MPEG2 / MPEG4 / ASP / WMV / AVI |
| Image Format | JPEG / BMP / TIFF / PNG / GIF |
| Audio Format | Wave / MP3 / WMA / AAC |
| Image Resolution | Supports 1080p, 720p, 480p and Multiple Resolutions |
| Power Supply | AC 100-240V, 50/60Hz |
| Overall Power Consumption | ≤220W |
| Standby Power Consumption | <1W |
| Operating Temperature | 0-50℃ |
| Storage Temperature | -20-60℃ |
| Operating Humidity | 0.85 |
| Storage Humidity | 0%-95% Non-Condensing |
| Accessories Included | 1×Power Cord, 1×User Manual, Remote Controller |
Customized Digital Signage Totem Solutions
Arotouch supplies Digital Signage Totem solutions for distributors, system integrators and commercial projects. Screen size, resolution, panel brand, touch technology and operating system can be configured according to project requirements.
Choose Full HD for standard advertising applications. Select 4K for sharper visual content. Add touch functionality when customers need to interact with the display.
With a floor-standing design, optional touch functionality and a Free CMS System, Arotouch Digital Signage Totem provides a flexible solution for modern indoor advertising and information display.
