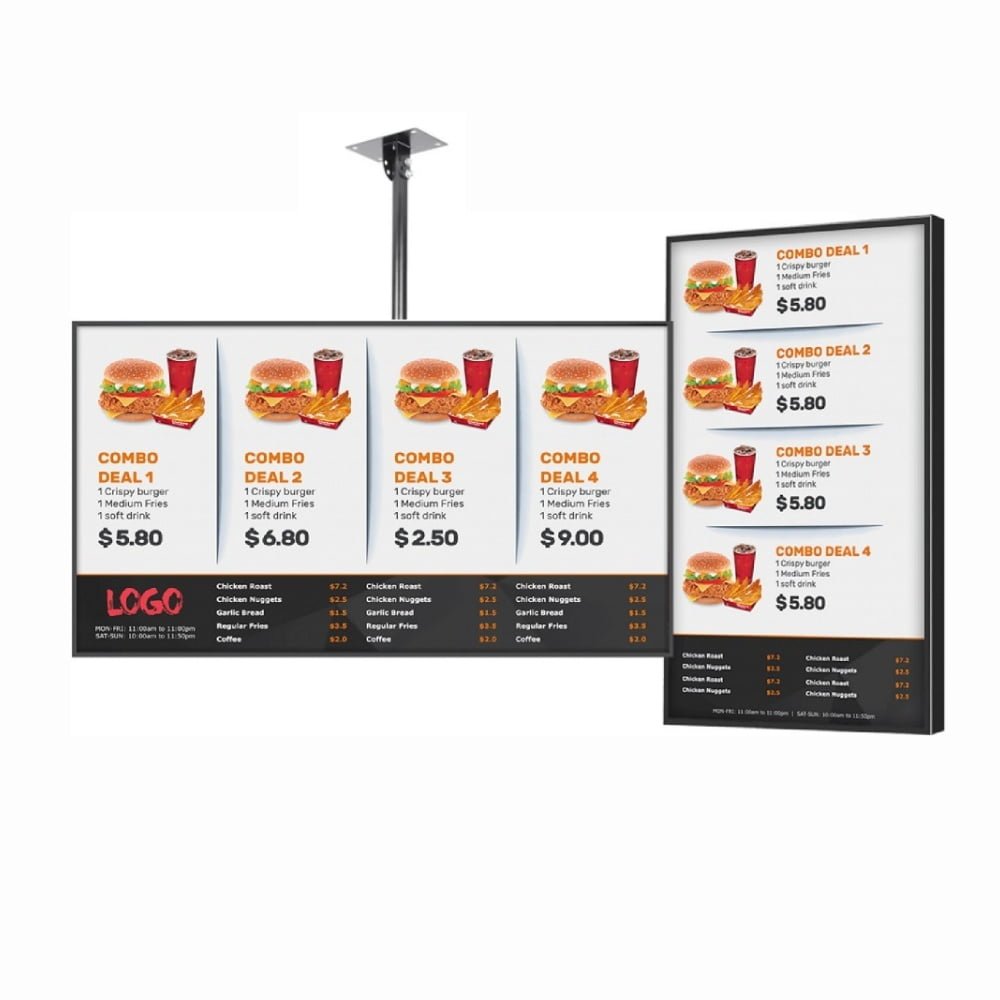

Retail Digital Signage Screen
Description
Arotouch Retail Digital Signage Screen helps stores present products, promotions and brand content in a clear digital format. It is suitable for retail stores, shopping malls, supermarkets, showrooms and brand shops.
The display is available in 32″, 43″, 50″ and 55″ sizes. Customized sizes are also available. Businesses can use the screen for product advertising, seasonal campaigns, store announcements and customer information.
The display supports USB standalone playback, Android and Windows systems. It also comes with a Free CMS System for digital content management.
Digital Signage for Retail Stores
Retail stores need to attract attention quickly. Digital content can help make products and promotions more visible. Instead of using printed posters, stores can display images, videos, prices and promotional messages on one screen.
The screen works well in different areas of a store. For example, it can be placed near an entrance or beside a product display. It can also be used near a checkout counter or inside a shopping mall.
- Retail stores and specialty shops
- Shopping malls and commercial centers
- Supermarkets and department stores
- Brand stores and showrooms
- Fashion and lifestyle stores
- Product display areas
Free CMS System for Easy Content Management
The Control system includes a Free CMS System. It helps businesses manage digital content for their displays. Users can prepare and update images, videos, advertisements, product information and promotional materials.
The display supports WiFi and Ethernet RJ45 connections. This makes it suitable for connected digital signage projects. Businesses can also use the supported CMS configuration to manage content across multiple displays.
Full HD Display for Product Advertising
The screen uses a TFT LCD panel with 1920×1080 Full HD resolution. It provides clear images for product photos, advertisements, videos and text.
The display offers 350 cd/m² brightness and a 3000:1 contrast ratio. It also supports 16.7M display colors. As a result, product images and promotional graphics can be presented clearly in indoor retail environments.
The 4mm tempered glass provides additional protection. It has an anti-glare surface and Mohs hardness Level 7. The coated aluminium frame gives the display a clean commercial appearance.
Optional Touchscreen for Interactive Retail
Some retail projects need customer interaction. For these applications, the display supports optional infrared touch and capacitive touch.
A touchscreen can be used for digital product catalogs, product specifications and interactive brand presentations. If touch is not required, the display can work as a standard digital signage screen.
Flexible System Options
The Retail Digital Signage Screen supports USB standalone operation. It also supports Android 6.0/7.1/9.0/11 and Windows 10.
WiFi and Ethernet RJ45 are available. Optional 3G/4G and Bluetooth 4.0 can also be provided. These options make the display suitable for different retail projects.
Key Features
- Designed for retail stores, shops and showrooms
- Suitable for product advertising and promotions
- 32″, 43″, 50″, 55″ or customized screen sizes
- 1920×1080 Full HD resolution
- 350 cd/m² brightness
- 3000:1 contrast ratio
- Free CMS System for digital content management
- Optional infrared or capacitive touchscreen
- Android, Windows and USB standalone support
- 4mm tempered anti-glare glass
- Mohs hardness Level 7 glass protection
- Built-in 2×10W speakers
- WiFi and Ethernet RJ45
- Optional 3G/4G and Bluetooth 4.0
- Wall-mount bracket included
Technical Specifications
| Panel Type | TFT LCD |
| Screen Size | 32″ / 43″ / 50″ / 55″ or Customized |
| Resolution | 1920×1080 Full HD |
| Brightness | 350 cd/m² |
| Contrast Ratio | 3000:1 |
| Aspect Ratio | 16:9 |
| Display Color | 16.7M |
| Response Time | 8ms |
| Viewing Angle | 89°/89° |
| Internal Storage | 2GB RAM + 16GB Storage |
| Touch | Infrared Touch / Capacitive Touch Optional |
| Glass | 4mm Tempered Glass, Mohs Hardness Level 7, Anti-Glare |
| Frame Material | Coated Aluminium |
| Control | Free CMS System |
| Operating System | USB Standalone, Android 6.0/7.1/9.0/11, Windows 10 Support |
| Speaker | 2×10W |
| Internet | WiFi, Ethernet RJ45, Optional 3G/4G, Bluetooth 4.0 |
| Interface | RJ45, SD Card Slot, USB, WiFi, Power Switch |
| Video Format Support | MPEG1/MPEG2/MPEG4/ASP/WMV/AVI |
| Image Format Support | JPEG/BMP/TIFF/PNG/GIF |
| Audio Format Support | Wave/MP3/WMA/AAC |
| Image Resolution | Supports 1080p, 720p, 480p and Multiple Resolutions |
| Power Supply | AC 100-240V, 50/60Hz |
| Overall Power Consumption | ≤220W |
| Standby Power Consumption | <1W |
| Operating Temperature | 0-50℃ |
| Storage Temperature | -20-60℃ |
| Operating Humidity | 0.85 |
| Storage Humidity | 0%-95% Non-Condensing |
| Accessories Included | 1×Power Cord, 1×User Manual, Wall-Mount Bracket |
Customized Retail Digital Signage Solutions
Arotouch provides customized Retail Digital Signage Screen solutions for stores, shopping malls, supermarkets and brand showrooms. Screen size, touch technology, operating system and connectivity can be selected according to project requirements.
The combination of Full HD display quality, optional touchscreen technology and a Free CMS System makes the screen suitable for retail advertising and digital product communication.
Arotouch works with retailers, distributors and system integrators to provide digital signage hardware for different commercial environments.
