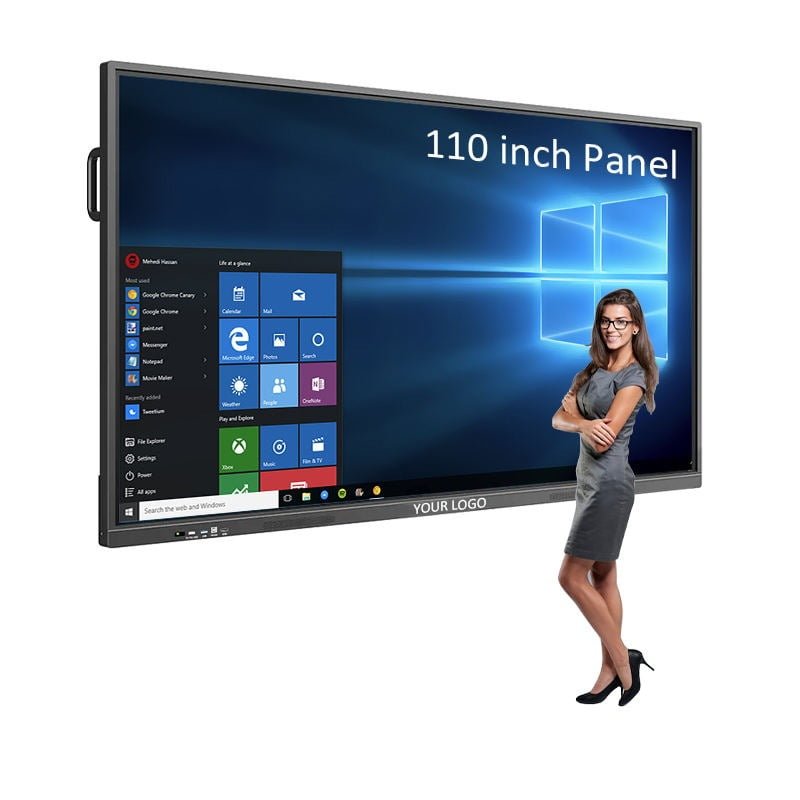

110 inch Smart Board.
● 4K UHD anti-glare display delivers images with extreme detail.
● Zero bonding technology between lcd panel and cover glass brings brighter viewing and smoother touching experience.
● Ultra-narrow and equal-width bezel design for perfect aesthetics.
● Dual-channel, 8-Array Speaker Brings High-Quality Surround Sound.
● High-Precision infrared Touch Technology Allows up to 20-Point Touch, Realizing Smooth Co-authoring.
● Bluetooth 5.2 offers higher data transmission rate, and lower power consumption.
● 4K UI, mobile-level operation, just like use a mobile phone.
Description
110 inch Interactive Flat Panel.
| Panel | Description | ||
| Backlight | DLED Backlight | ||
| Panel size | 110 inch | ||
| Aspect Ratio | 16:9 | ||
| Resolution | 3840*2160 | ||
| Brightness (cd/m²) | 400 | ||
| Contrast Ratio | 1200:1 | ||
| Response Time (ms) | 8 | ||
| Color Support | 16.7M | ||
| Viewing Angle (H/V) | 178 °/178 ° | ||
| CPU | T982 4-Core A55 (1.9G) Mali-G52 MP2 | ||
| CPU Frequency | 2.4GHz | ||
| RAM/ROM | DDR4: 4GB eMMC: 32GB | ||
| System Compatibility | Android 13 | ||
| Touch Control | Infrared 20-Point Multi-Touch | ||
| Touch Precision (mm) | ±1 | ||
| Recognizable Object | 5 Points 2mm | ||
| Glass | 4mm Tempered Glass, Level 7 On Mohs Hardness Scale, Anti-Glare | ||
| Touch Response Time (ms) | ≤10 | ||
| Touchscreen Input | Opaque objects (e.g. Finger, Pen, etc.) | ||
| Front Interfaces | USB for Touch*1, HDMI*1, TYPE-C*1, USB3.0*2. | ||
| Back Interfaces | AV IN*1, HDMI IN*3,VGA IN*1, PC Audio in*1, DP In *1, Type C*1, USB for Touch *1, USB2.0*1, RJ45*1, RS232*1. | ||
| Output | Line Out*1, RJ45 Out*1, HDMI Out*1, COAX Out*1. | ||
| Network | 2*RJ 45,10M/100M/1000M adaptive Ethernet Interfaces | ||
| Frequency domain | 80Hz～20kHz | ||
| Speaker | 2 *15W ( 8 Ω )+ 2*20W | ||
| WiFi Configuration | Wi-Fi6 + Wi-Fi5 Dual-Module, Supports 5G/2.4G | ||
| WiFi Performance | 30 m²Coverage, 20m Transmission Distance in Open Space | ||
| Pixels | 48M | ||
| Sensor Resolution | 3840*3024(15fps) | ||
| Maximum Video Frame Rate | 30fps@1080P | ||
| Microphone | 8-Array Built-in Microphone,10m Transmission Distance in Open Space. | ||
| Bluetooth Version | 5.2 | ||
| Bluetooth Performance | 10m Transmission Distance in Open Space | ||
| Multi-Language | 24 (Simplified Chinese,Traditional Chinese, English, Japanese, Arabic, French,Spanish, Portuguese, German ,Italian, Dutch, Polish, Bulgarian,Kazakh, Russian, Ukrainian, Thai, Uzbek, Korean, Catalan, Galician, Vietnamese, Hungarian,Croatian) | ||
| Wall mount hole (mm) | 1000 x 800 | ||
| Wall mount screw | 4-M8 Screw Hole | ||
| Power Supply | AC 100 to 240V, 50/60Hz | ||
| Overall Power Consumption( W） | ≤220 (on without OPS) | ||
| Standby Power Consumption(W） | ＜0.5 | ||
| Product Dimensions （W*H*D（mm） | 2502×1498.7x103mm | ||
| Package Dimensions（W*H*D)（mm） | 2680x1655x270mm | ||
| Weight（Kg） | Net Weight: 105kg/ Gross Weight:130 KG | ||
| Operating Temperature | 0 to 50 °C | ||
| Operating Humidity | 10% to 90% (Non-Condensing) | ||
| Storage temperature | -20 to 60 °C | ||
| Storage humidity | 0% to 95% (Non-Condensing) | ||
| Accessories Included | 1*Power Cord 、2*Touch Pen 、1*User Manual | ||
